  • Low Cost Structure Steel Prefabricated Industrial Shed

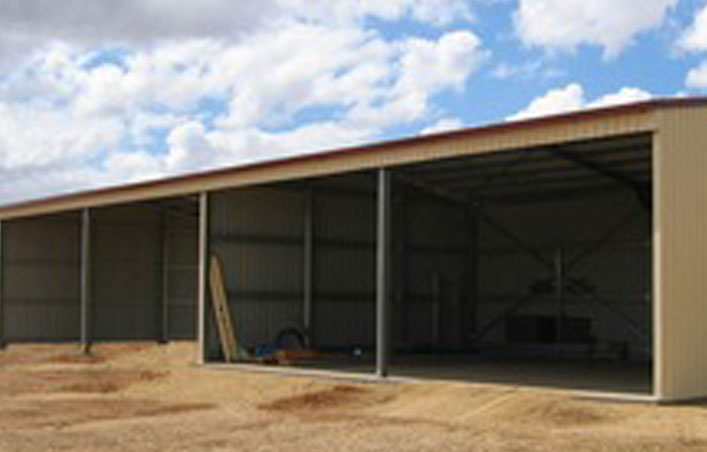

Low Cost Structure Steel Prefabricated Industrial Shed

Low Cost Structure Steel Prefabricated Industrial Shed

Description:

Product Description of Prefabricated Industrial Shed

1.Customized design: You can choose what kinds of house you want

2. Light and reliable: the steel structure is strong and firm. wind resistance capacity>120km / h, seismic resistance capacity >grade 8

3.Time and Labor saving and Easy assembly: two skilled workers can finish assembling one standard unit within 3 hours

4.Flexible combination :Mutiple modular buildings can be easily combined horizontally and vertically

5.Wide applications: our container house and prefab house can be used as warehouse, home, villa, toliet, shop, hotel,camp,workshop,office.

6. Good looking and neat inside: Water pipe and wires could be fixed into and be hidden into the sandwich panel


inquire Now
Product Information
NameLow Cost Structure Steel Prefabricated Industrial Shed
Dimensions of Poultry Shed90mx12mx3m, Length x Width x eave height or as your requirements
Roof and wall materialthickness 50mm EPS sandwich panel, 0.5/0.5mm corrugated steel sheet
Design Common Norms of Poultry Shed"Structure Steel Sheds  Design Code" (GB50017-2003)

"Cold-formed steel structure technical specifications" (GB50018-2002)

"Construction Quality Acceptance of Steel" (GB50205-2001)

"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)

"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)
Component and Characteristics of the ConstructionThe main frame (columns and beams) is made of H section steel, steel grade is Q235 or Q345

The envelop construction net is made of cold form C-style purlin

The wall and roof are made of color steel board or sandwich panels

Doors and windows can be designed at anywhere suit to different requests, and can sliding type or roll up type

Ventilation could be by window or ventilator

The light transfer zone could be added on the wall or roof with material sun glass board.
Connection MethodThe columns are connected with the foundation by pre-embedding anchor bolt

The beams and columns, beams and beams are connected with high intensity bolts
Construction AdvantageCould be designed according to different purpose and environment condition

Long life span, could be more than 50 years

Quick and easy install work and the more economic friendly

Could be moved and recycle

Strong seismic and wind resistance
ApplicationWorkshop, warehouse, office buildings, supermarkets, logistic warehouses, showrooms, hangar, shelter, etc
