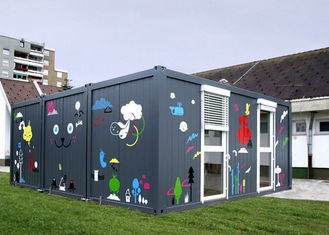

Firm Affordable Steel Structure Flat Pack Container House

Firm Affordable Steel Structure Flat Pack Container House

Description:

Description

The flexible prefab system calls for individual customer-based solutions, with several layout options. They can be used either as individual units or larger buildings made up of a combination of units. A flexible panel system and the installation of partition walls allow for the design of any room- or building size.


That flat pack container house, That made of a sandwich panel for wall, There are thickness 50mm/75mm EPS sandwich panel, rock wool, and glass wool.

One set size: L5.85m*W2.25m*H2.8m.

8sets packed well that can be loaded in 40HQ for sea shipping.


Anyone is interested in that item, please contact us feel free

Email: lindy@wzhgroup.com

Whatsapp: +8613630833259

Skype: lindyrock123


inquire Now
Product Information

Detailed Product Description

Material:Steel Structure And Sandwich PanelRoof:75MM PU Sandwich Panel
Wall System:75MM EPS Sandwich PanelDoor:Steel Door Or Sandwich Panel Door
Surface Treatment:Blast Cleaning, Painted Or GalvanizedFoundation:Steel Foundation



Specification

NameExternal DimensionsInternal Dimensions

LengthwidthHeightLengthwidthHeight
20'x8' standard units20'6058mm8'2438mm9'2"2791mm5858mm2238mm2520mm
8'x8' Mini corridor units8'2438mm8'2438mm9'2"2791mm2238mm2238mm2520mm
10'x8'short units10'3000mm8'2438mm9'2"2791mm2825mm2238mm2520mm
16'x8'corridor units16'4888mm8'2438mm9'2"2791mm4688mm2238mm2520mm
24'x8' extra units24'7200mm8'2438mm9'2"2791mm7000mm2238mm2520mm
30'x8' Overlength units30'9000mm8'2438mm9'2"2791mm88002238mm2520mm
20'x10' Overwide units20'6058mm10'3000mm9'2"2791mm5858mm2800mm2520mm
Re:  Max long: 9000mm, Max wide: 3000mm, the height can be 2591mm (8'6"),or 2896mm(9'6"),Max height: 3000mm       TARE WEIGHT:   1950  KGS  ( For standard 20’ x 8’units )

ALL DIMENSIONS AND WEIGHTS ARE NOMINAL AND SUBJECT TO MINOR VARIATIONS THAT MAY OCCUR DURING THE MANUFACTURING PROCESS.


Competitive Advantage

Uniform shape and size make a big project seems more stately.

Simple structure make installing job easier and quicker.

Container shape frame make the house strong and solid enough to insure the safety.

Freely combination suit for many kinds using as you want.

Fireproof, heat/cold-insulated, non-shrinking and enlarging work size with  little pollutions.

Life time is more than 10 years.


Application

Office, dormitory building, movable bathroom/toilet, clinic, equipment shelters. And any other temporary house of building.
